Wall Putty Machine

Wall Putty Machine
Wall Putty Machine
Wall Putty Manufacturing Unit

Wall Putty Machine

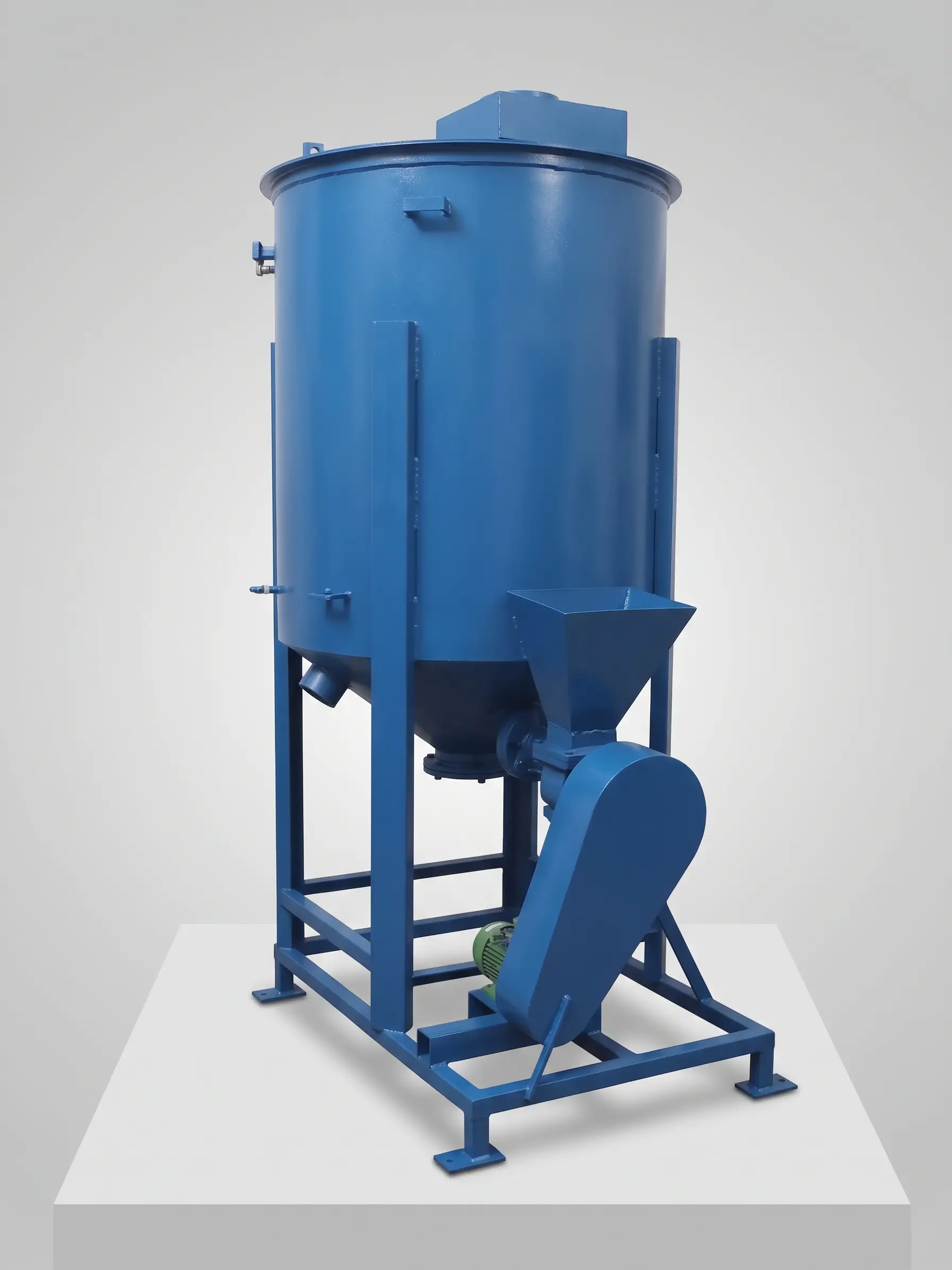

VARADA Wall Putty Manufacturing Machines are heavy-duty, high-efficiency ribbon blenders engineered for rapid, homogeneous blending of dry powders and polymer additives.

Specifically designed for white cement-based wall putty, acrylic wall putty, tile adhesives, and dry mortars, ensuring lump-free dispersion of fine minerals, polymers, and cellulose fibers in minimal cycle time.

Equipped with dust-free sealed feeding hoppers, heavy-duty helical reduction gearboxes, and zero-leakage pneumatic discharge gates for reliable, continuous commercial plant operation.

Additional Information

Designed for industrial-scale wall putty, tile adhesive, and plaster manufacturing with high batch repeatability and low maintenance.

Product: Commercial Wall Putty Machine (Ribbon Blender)
Batch Capacity: 500 kg to 5,000 kg per batch (custom sizes available)
Agitator Type: Double helical ribbon / high-shear paddle rotor
Construction: Carbon Steel / Wear-resistant Hardox / SS304
Drive System: TEFC motor with heavy helical reduction gearbox
Discharge Mechanism: Pneumatic knife-gate slide valve with zero leakage
Dust Control: Sealed charging cover with pulse-jet dust collector port
Mixing Time: 5 to 12 minutes per complete homogeneous batch

Benefits

  • Uniform, lump-free blending of fine cement, minerals, and micro-polymers
  • Low power consumption due to hydrodynamically balanced ribbon geometry
  • Dust-free, sealed operation maintaining a clean and safe factory environment
  • Abrasion-resistant liner plates and reinforced blades for long life
  • Fast bottom discharge ensuring minimal batch residue and zero cross-contamination
  • Easily integrates with screw feeders, bucket elevators, and auto-packing systems

Industries Served

Wall Putty & Plasters
Construction Chemicals
Tile Adhesives & Grouts
Dry Mortar Plants
Cement & Mineral Blends
Texture & Paint Powders
Gypsum & Skim Coats
Building Materials

Applications

Optimized for high-throughput production of powdered architectural coatings, mortars, and adhesive compounds.

  • White cement-based water-resistant wall putty blending
  • Acrylic wall putty and exterior architectural finish powders
  • Polymer-modified tile adhesives and epoxy tile grouts
  • Ready-mix plaster, joint fillers, and dry skim coats
  • Mineral powder and cellulose additive homogenization
